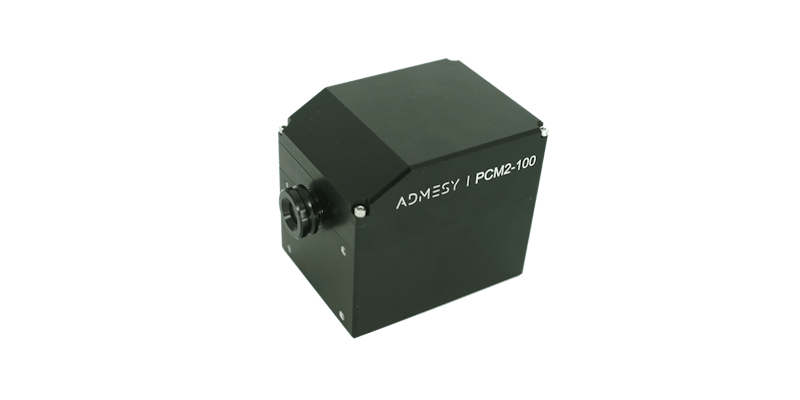

PCM2-100
0.0001 - 2 800 cd/m²
Meet the next generation Colorimeter for fast and precise display color measurement in a rugged and durable design. It provides accurate color readings, ensuring quick adjustments for displays, monitors, and screens. Its compact and user-friendly design makes it ideal for professionals seeking a cost-effective solution without sacrificing performance.
- Upgraded electronics with dual technology
- No polarization thanks to highly accurate in-house coated filters
- Measures down to 0.0003 cd/m² in 1 s
- Very compact design
- Flicker luminance (Y) function: 3 000, 3 125 or 2 000 samples/second
| Luminance range | 0.0003 - 15 000 cd/m² |
| Chromaticity range | 0.003 cd/m² - 15 000 cd/m² |
| UHL mode | 95 000 cd/m² |
| Acceptance angle | 5° (± 2.5°) |
| Measurement spot size | 18.7 mm at 100 mm WD |
固件 |
|
固件 |
|
操作手册 |
|
操作手册 |
|
软件 |
|
软件 |
|
Prometheus Colorimeter Series – Lens Options
2.1 mm 聚焦透镜色度计
0.001 - 30 000 cd/m² (UHL模式 190 000 cd/m²)
2.1 mm 聚焦透镜色度计（内置LED瞄点器）
0.001 - 30 000 cd/m² (UHL模式 190 000 cd/m²)
Prometheus X 27 mm 色度计
0.0001 - 2 800 cd/m² (UHL模式 20 000 cd/m²)
Prometheus D 2 mm 双光斑色度计（内置LED瞄点器）
0.001 - 30 000 cd/m² (UHL 模式 190 000 cd/m²)
5 mm 色度计
0.001 - 30 000 cd/m² (UHL 模式 190 000 cd/m²)
10 mm 色度计
0.001 - 30 000 cd/m² (UHL模式 190 000 cd/m²)
Prometheus 六角度 10 mm 色度计
0.003 - 30 000 cd/m² (UHL 模式 190 000 cd/m²)
10 mm 广角色度计
0.0003 - 7 500 cd/m² (UHL 模式 190 000 cd/m²)
10 mm IFC 色度计
0.0025 - 75 000 cd/m² (UHL 模式 460 000 cd/m²)
20 mm 色度计
0.0003 - 7 500 cd/m² (UHL模式 48 000 cd/m²)
27 mm 广角色度计
0.0001 - 2 800 cd/m² (UHL模式 20 000 cd/m²)
PCM2-100
0.0001 - 2 800 cd/m²
PCM2-100
0.0001 - 2 800 cd/m²
