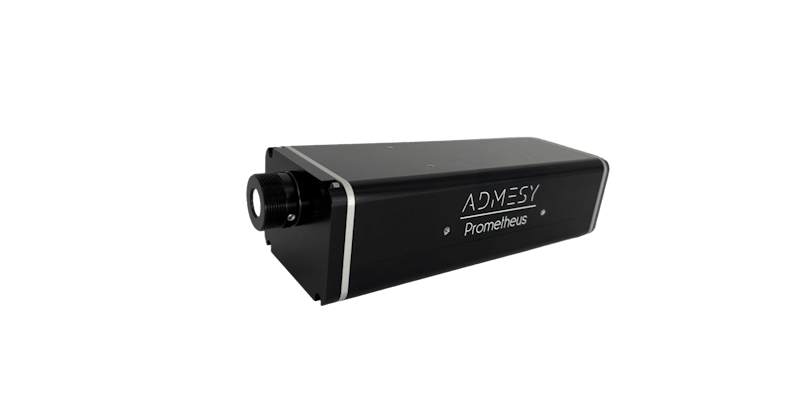

Colorimeter Cosine Corrector
0.008 - 210 000 Lux
Colorimeter with cosine corrector for lighting applications
The Prometheus cosine corrector focuses on precise measurements of illuminance (lux), color and flicker measurements and ensures consistent results even in challenging lighting conditions. The attached cosine corrector compensates the angle of light incidence and ensures that light entering the sensor is measured uniformly across a 180° range.
- highly accurate color measurement according to human eye
- Flicker illuminance measurement with 2000, 3000 or 3125 samples/s
- Powerful MCU for internal SVM, percentage flicker and flicker index calculations
- USBMTC standard compliant
- Auto-range function
| Illuminance range [Lux] | 0.008 - 210 000 |
| Chromaticity range [Lux] | 0.008 - 210 000 |
| Optical system | 1 cm² cosine corrector |
| Flicker sample mode | 2000, 3000 or 3125 |
Firmware |
|
Firmware |
|
Manual |
|
Manual |
|
Software |
|
Software |
|
Application Note |
|
Application Note |
|
White Paper |
|
White Paper |
|
Overview of all Colorimeter Models
