Colorimeter 10 mm IFC
0.0025 - 75 000 cd/m² (460 000 cd/m² in UHL mode)
Color measurement wherever you need it

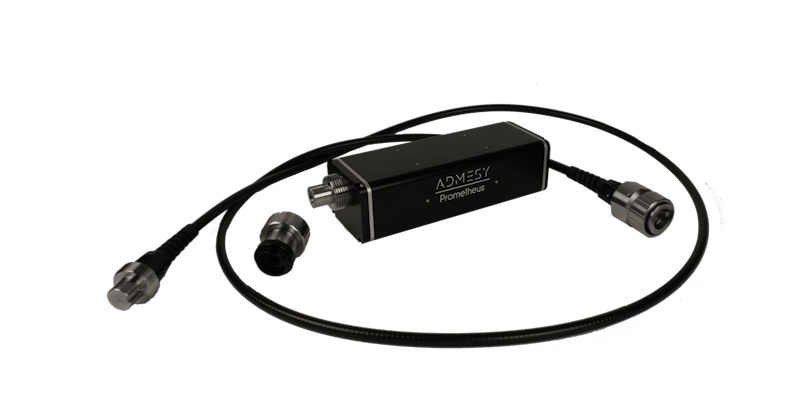

This Prometheus colorimeter is unique with the fiber-attached 10 mm lens. The fiber connection makes it perfect for usage in a temperature chamber or positions difficult to reach due to space constraints. Its color measurement speed goes down to 22 ms depending on luminance level and frame frequency. With manual settings even lower integration times down to 320µs are possible.
“The perfect colorimeter for positions difficult to reach.”
Perfect filters
The Prometheus Series offers further improved in-house made filters which are near-perfect to the CIE 1931 or CIE 170-2:2015 color matching functions. This results in highest accuracy, even for display measurements where the spectral power distribution in a production batch might vary.
Flexible design
The Prometheus IFC is perfect for applications with low accessibility. With its very robust fiber a usage in temperature chambers or positions difficult to reach are no longer a problem.
Flicker and waveform
With the high sampling speed of the Prometheus colorimeter you get an all-in-one solution to measure flicker, adjust V-Com or assess the waveform of the display signal.
Highlights
- Fast measurements, even at low luminance levels
- Fiber connection for flexible usage
- Collimated lens → allow different measurement distances
- Flicker measurement (3125 samples / second)
- Mechanical shutter
- In addition to Visual Studio (C#, C++, Visual Basic) also support of Labview, Matlab and Python
- Supports Windows, OS X and Linux integration
Prometheus Series
Colorimeter 10 mm IFC
0.0025 - 75 000 cd/m² (460 000 cd/m² in UHL mode)
Downloads
- Prometheus Colorimeter – Leaflet (PDF)
- Prometheus Colorimeter Operating Manual (PDF)
- Prometheus Colorimeter Firmware
- Prometheus Colorimeter – Case Study (PDF)
- Prometheus Suite for Windows and macOS
- Prometheus IFC 10 mm Specification (PDF)
- Measure How We See – the Way to Perfect Display Colors – White Paper (PDF)
